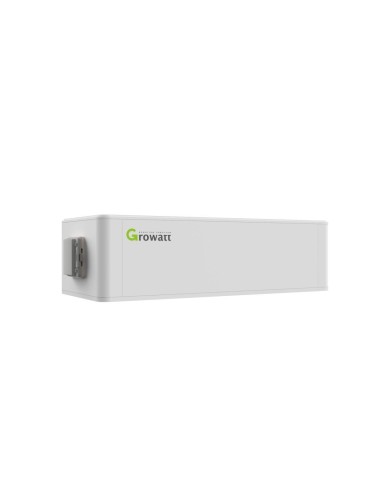

Growatt BDC Controller | Battery Balancing for XH Inverters

The Growatt BDC (Bidirectional DC/DC Box) controller is a device placed between the inverter and the battery. Its role is to monitor the charge state of the cells and balance them, i.e., charge each cell with the appropriate current and voltage. This device is essential for photovoltaic systems designed for energy storage, especially if the inverter lacks a built-in regulator. The BDC controller, designed for MIN TL-XH series inverters, supports 2-7 Growatt ARK-2.5H-A1 batteries.

GENERAL INFORMATION

• Works with MIN XH and MOD XH series inverters
• ARK LFP (lithium-iron-phosphate) batteries are cobalt-free, ensuring high safety and reliability
• Easy installation due to modular, stackable design
• Remote firmware updates
• Long lifespan with a 10-year warranty
• Requires at least 2 batteries + BDC controller for single-phase inverters or 3 batteries + BDC controller for three-phase inverters
• ARK batteries are IP65 rated for reliable operation indoors and outdoors
• Compact (650260180mm) and lightweight (30kg each)
• Monitors both overall battery status and individual cells, providing full system protection
• Balances cell voltage for longer battery life
• Growatt warranty plan

Basic specifications of Growatt BDC:

• Weight [kg]: 16.5
• Communication port: CAN, RS485
• Dimensions (W/D/H) [mm]: 650/260/265
• Monitoring parameters: SOC, system voltage, current, cell voltage, cell temperature, PCBA temperature
